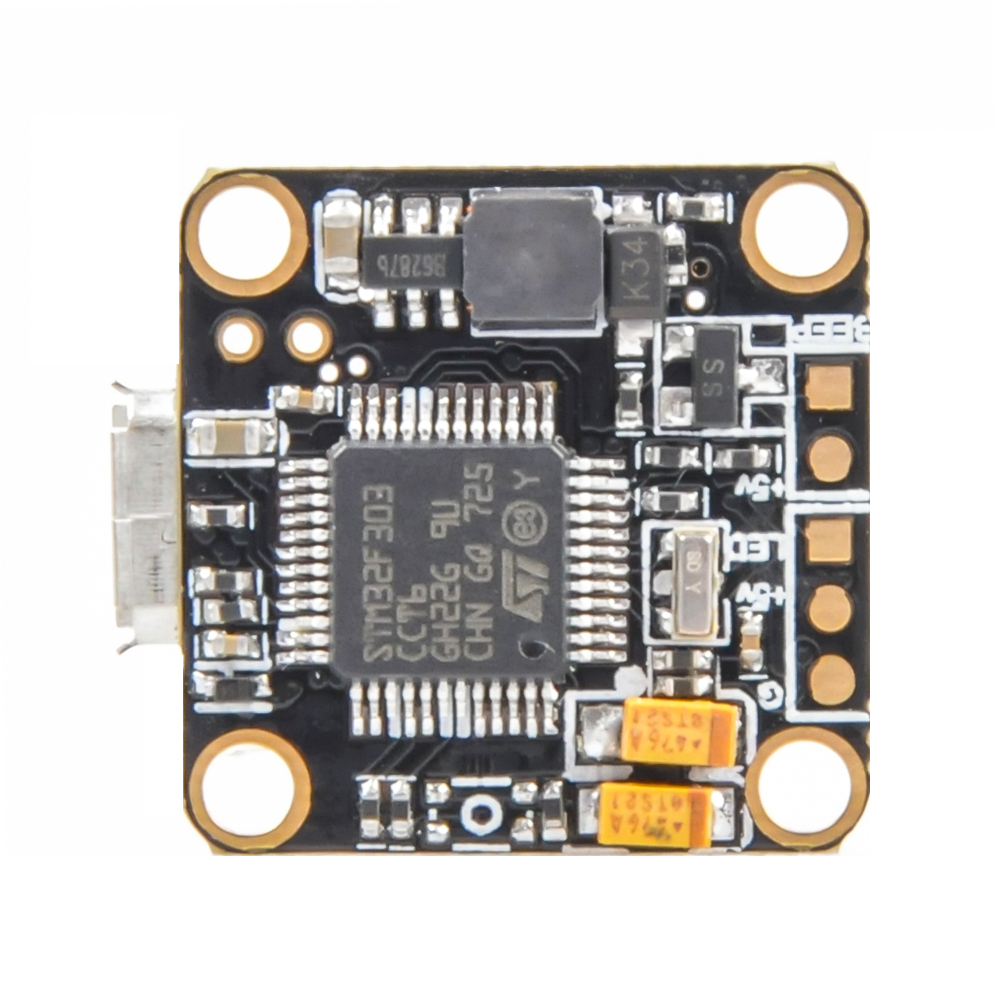

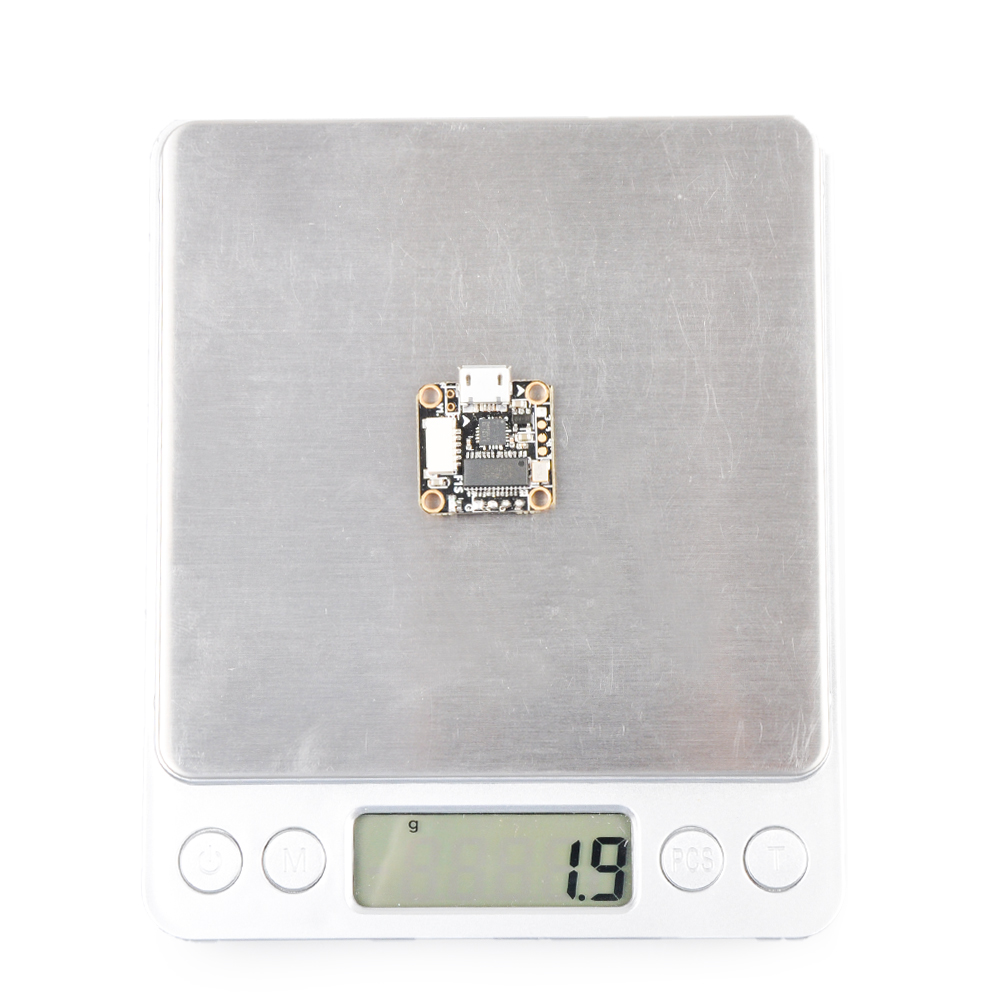

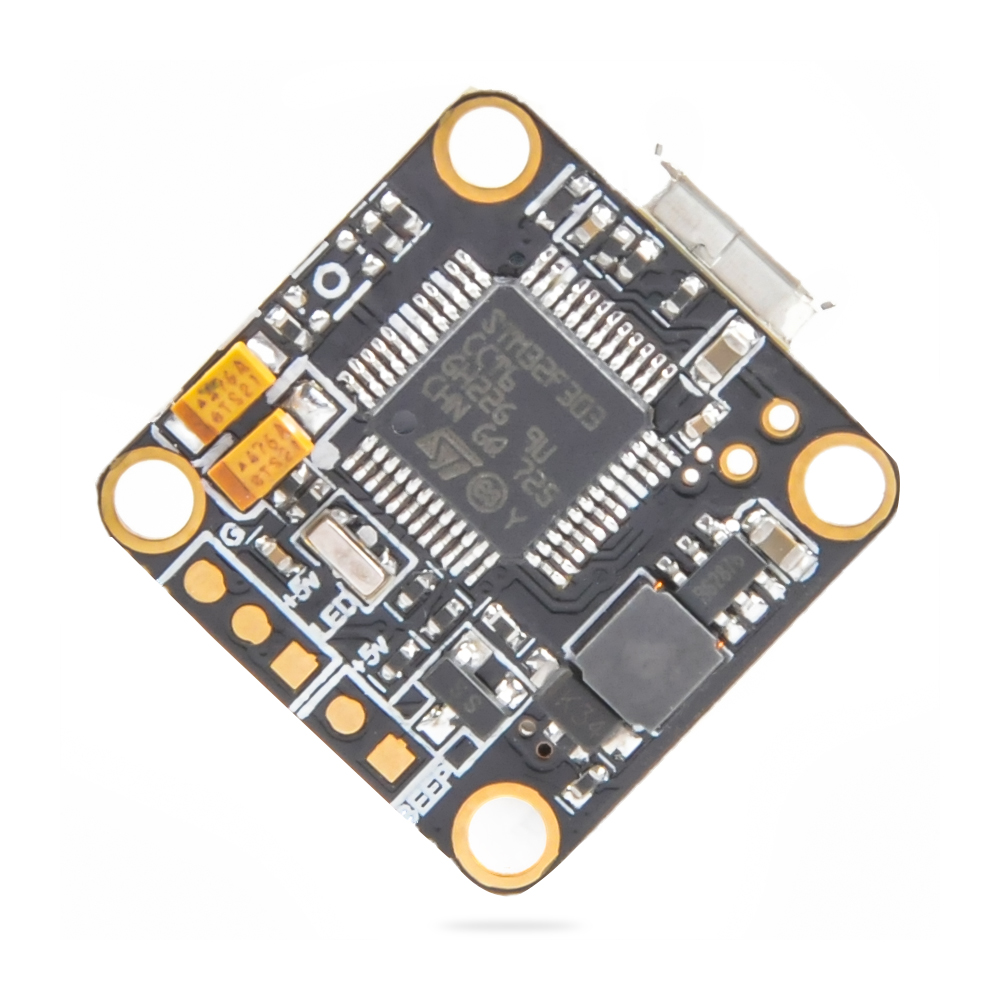

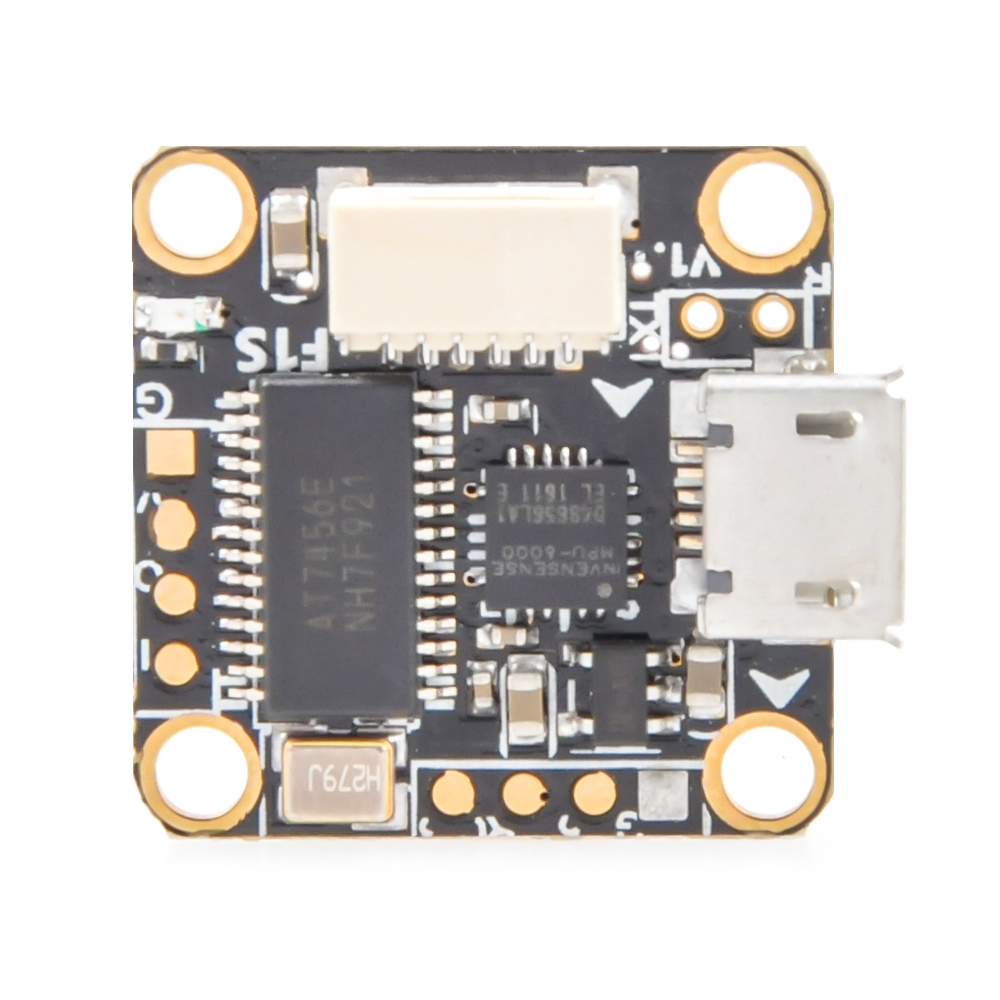

Specification: Brand name: FULL SPEED Item name: Teeny 1S F3 Flight Controller Product size: 20 x 20 x 5mm Mounting hole: 16 x 16mm Mounting hole diameter: 2mm Product weight: 1.9g Processor: STM32F303CCT6 ( 72MHz, 256K Flash ) Sensor: MPU6000 ( connected by SPI ) Firmware version: BetaFlight 3.1.0 Built-in ESC: 5V 0.5A Receiver: PPM, Spektrum 1024 / 2048, SBUS, XBUS, SumD SumH RX etc. Power supply: 1S LiPo battery ( 3.3V - 4.2V ) Suitable for 60mm mini brushless frame
Features: -Support programmable LED ( turn off transponder before using ) -Support BLHeli suite -Support the newest Dshot ESC -Built-in voltage detection, alarm -Built-in OSD -Buzzer solder pin -LED-STRIP connector -BB ring
Type: Flight Controller,Brushless
Motor Type: Brushless Motor
Flight Controller Type: F3
Continuous Current: 6A
Battery Voltage: 1S
OSD Menu Language: English
0.0025
Package weight: 0.058 kg Product size (L x W x H): 2.00 x 2.00 x 0.50 cm / 0.79 x 0.79 x 0.2 inches Package size (L x W x H): 6.00 x 8.00 x 0.60 cm / 2.36 x 3.15 x 0.24 inches
Package Contents: 1 x Flight Controller, 8 x Nylon Column, 4 x m2 Nylon Nut, 1 x 6Pin Flexible Flat Cable, 2 x Wire
