Matek Systems F722 - STD STM32F722 F7 Flight Controller - Black - 3R60419812

Matek Systems F722 - STD STM32F722 F7 Flight Controller - Black - 3R60419812

Close
$102.67
$63.66Save 38%
Tax excluded
Color:
Black
SKU:
3R60419812
Gift-wrap:
Available
Quantity
In Stock

PayPal
  •  Payment Security - Secure Transactions Using Paypal Payment Security - Secure Transactions Using Paypal
  • Quick Ship - Leaves Warehouse In 1-2 Business Days Quick Ship - Leaves Warehouse In 1-2 Business Days
  • Return Policy - 30 Days Free Exchange & Return Policy Return Policy - 30 Days Free Exchange & Return Policy
Features:
- 3 x LEDs for FC status (blue, red) and 3.3V indicator (red)
- 7 x PWM / DSHOT outputs without conflict
- 5 x UART

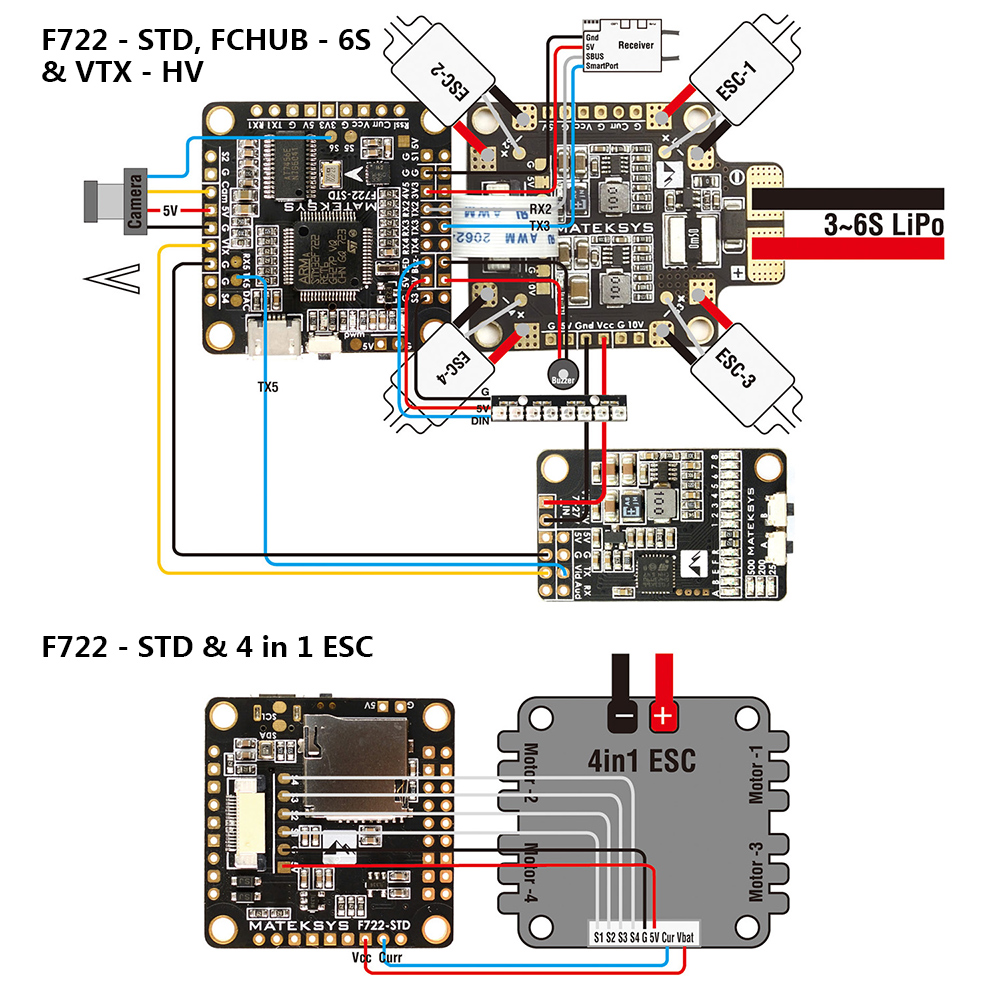

- 1 x group of G/S1/S2/S3/S4 pads for 4 in 1 ESC signal/GND
- 1 x I2C1
- 4 x pairs of corner pads for ESC signal/GND connections (DSHOT compatible)
- 1 x side-press button for BOOT (DFU) mode

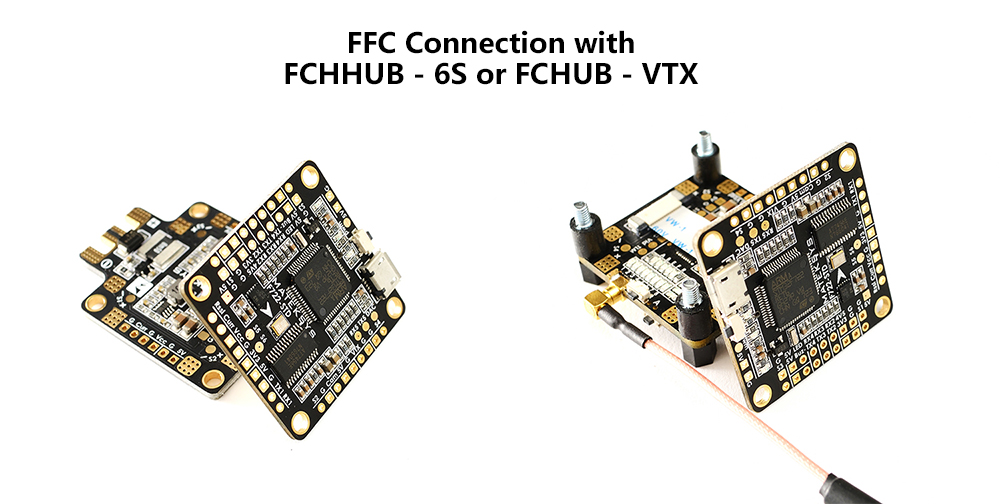

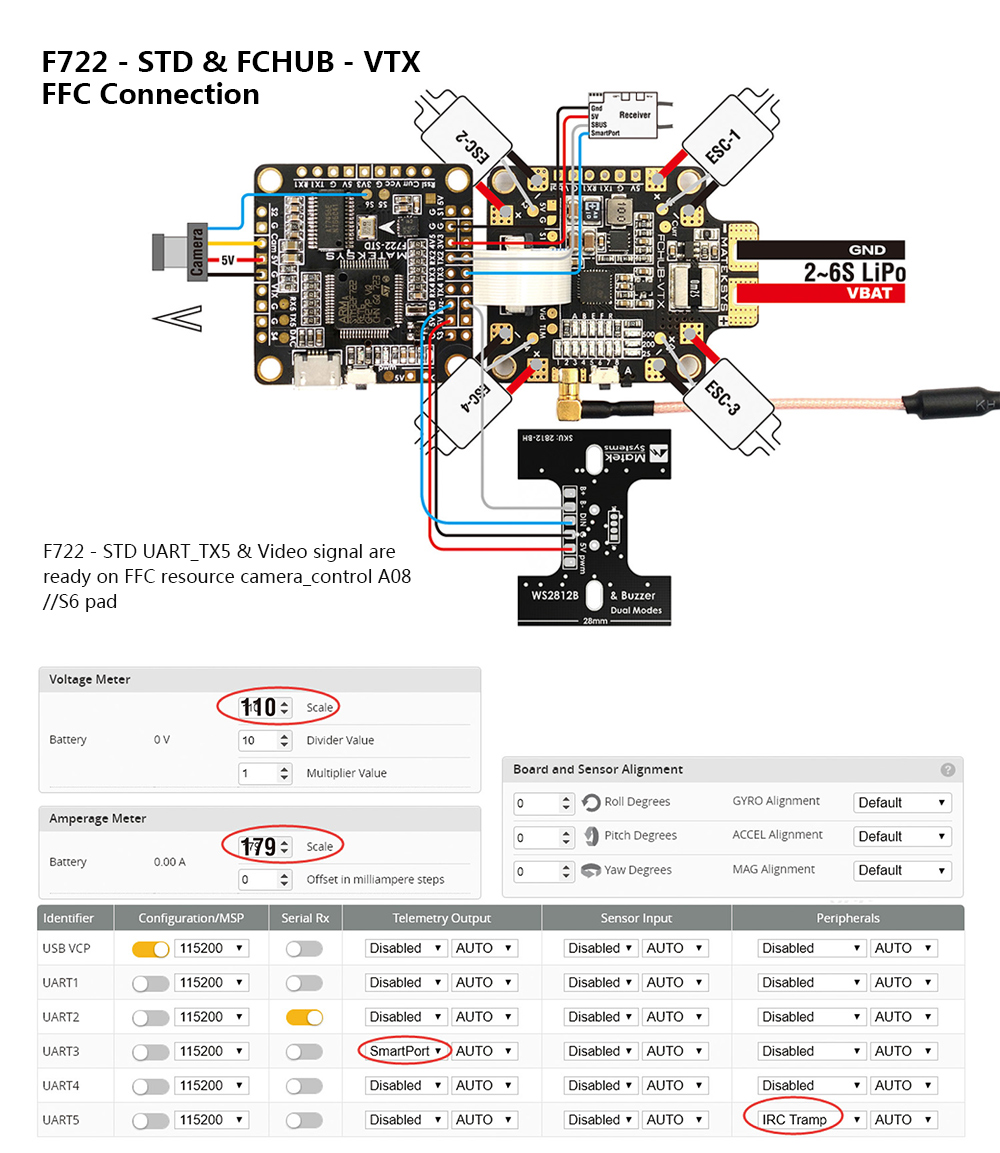

- 1 x 16Pin bottom mounted FFC slot for FCHUB - 6S / FCHUB - VTX connection

Specification:

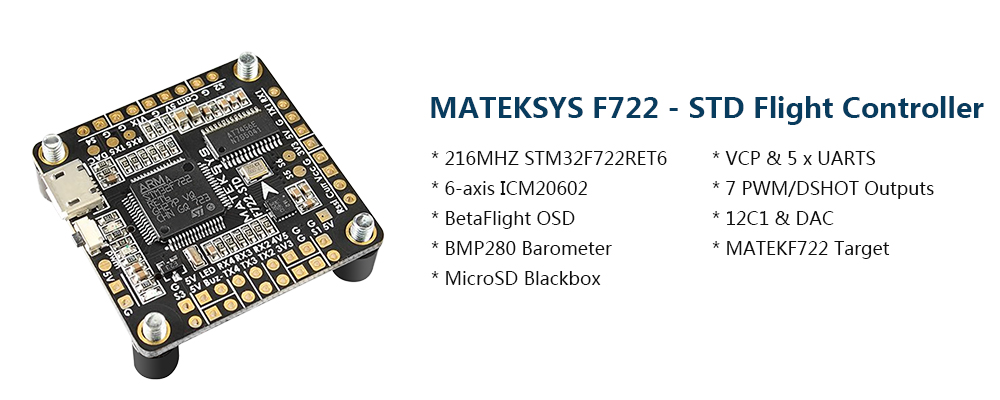

Brand name: Matek Systems
Item name: F722 - STD flight controller
36 x 36mm PCB with 30.5mm mounting holes
MCU: 216MHz STM32F722RET6
IMU: 32K ICM20602 gyro/accelerometer (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5

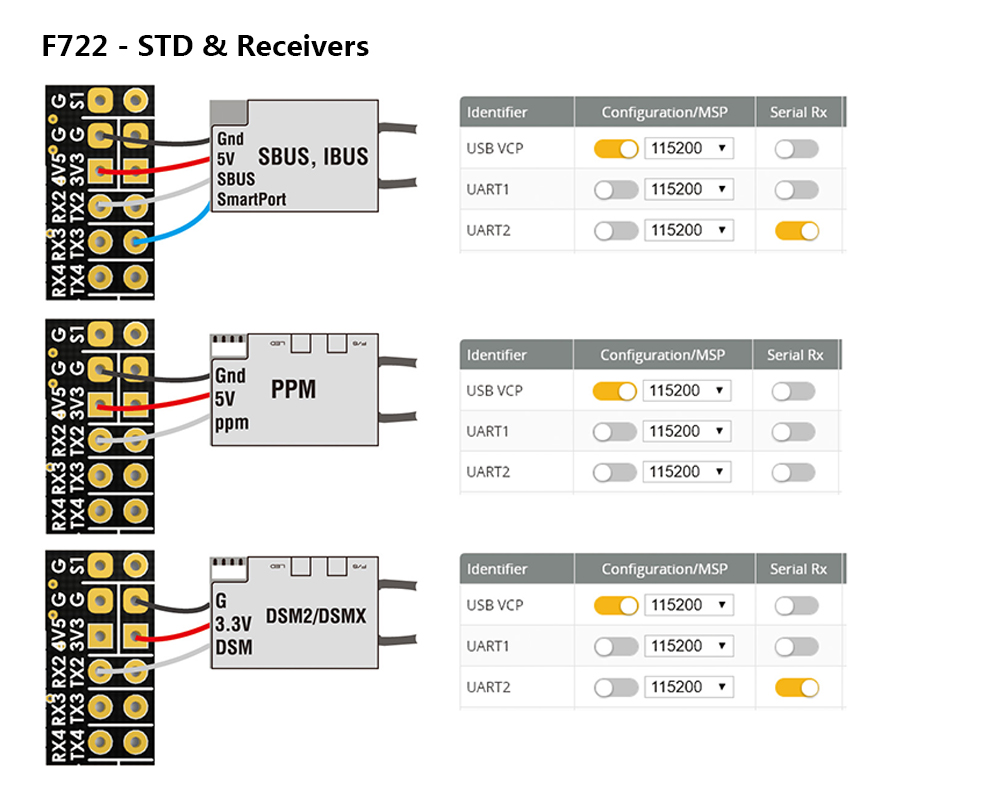

PPM/UART shared: UART2-RX
Battery voltage sensor: 1:10
Current sensor: No (FCHUB - 6S, FCHUB - VTX option)
BEC 5V: No (FCHUB - 6S, FCHUB - VTX option)
LDO 3.3V: Max. 300mA
I2C1 SDA/SCL: Yes
Camera control: Yes
DAC: Yes
WS2812 LED strip: Yes
Beeper: Yes
RSSI: Yes
Material: Composite Material
RC Parts & Accs: Speed Controllers
0.100
Package weight: 0.161 kg
Product Size(L x W x H): 4.00 x 4.00 x 1.00 cm / 1.57 x 1.57 x 0.39 inches
Package Size(L x W x H): 7.00 x 6.00 x 1.00 cm / 2.76 x 2.36 x 0.39 inches

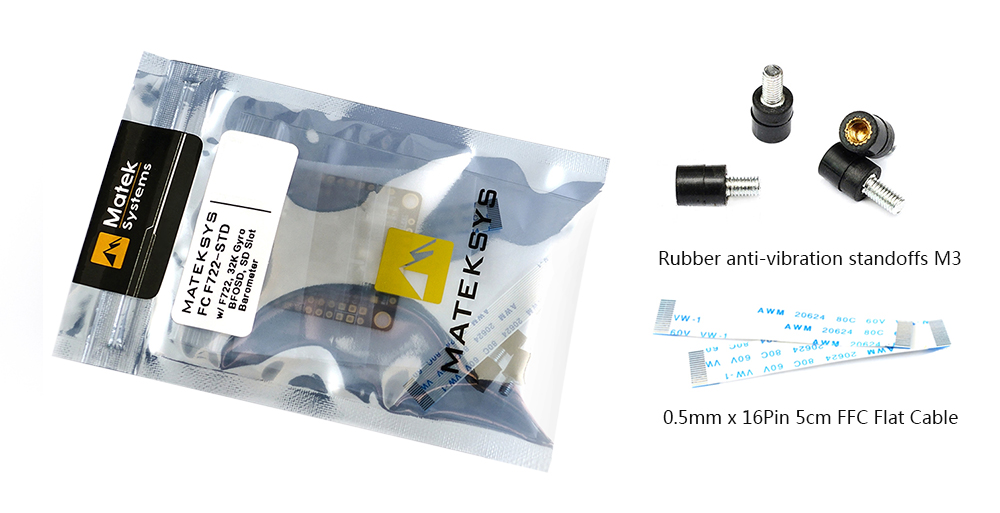

Package Contents: 1 x F22 - STD Flight Controller, 2 x Rubber Anti-vibration Standoffs M3, 4 x 0.5mm 16Pin 5cm FFC Flat Cable
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
Matek Systems F722 - STD STM32F722 F7 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Drone
