Matek Systems F411 Mini Flight Controller for RC Drone - Black - 3J60419012
$85.40
$21.35Save 75%
Offer ends in:
Tax excluded
Color:
Black
SKU:
3J60419012
Gift-wrap:
Available
Payment Security - Secure Transactions Using Paypal
Quick Ship - Leaves Warehouse In 1-2 Business Days
Return Policy - 30 Days Free Exchange & Return Policy
Features:
- 3 x LEDs for FC status (blue, red) and 3.3V indicator (red)
- 7 x PWM/DSHOT outputs without conflict
- 5 x UART

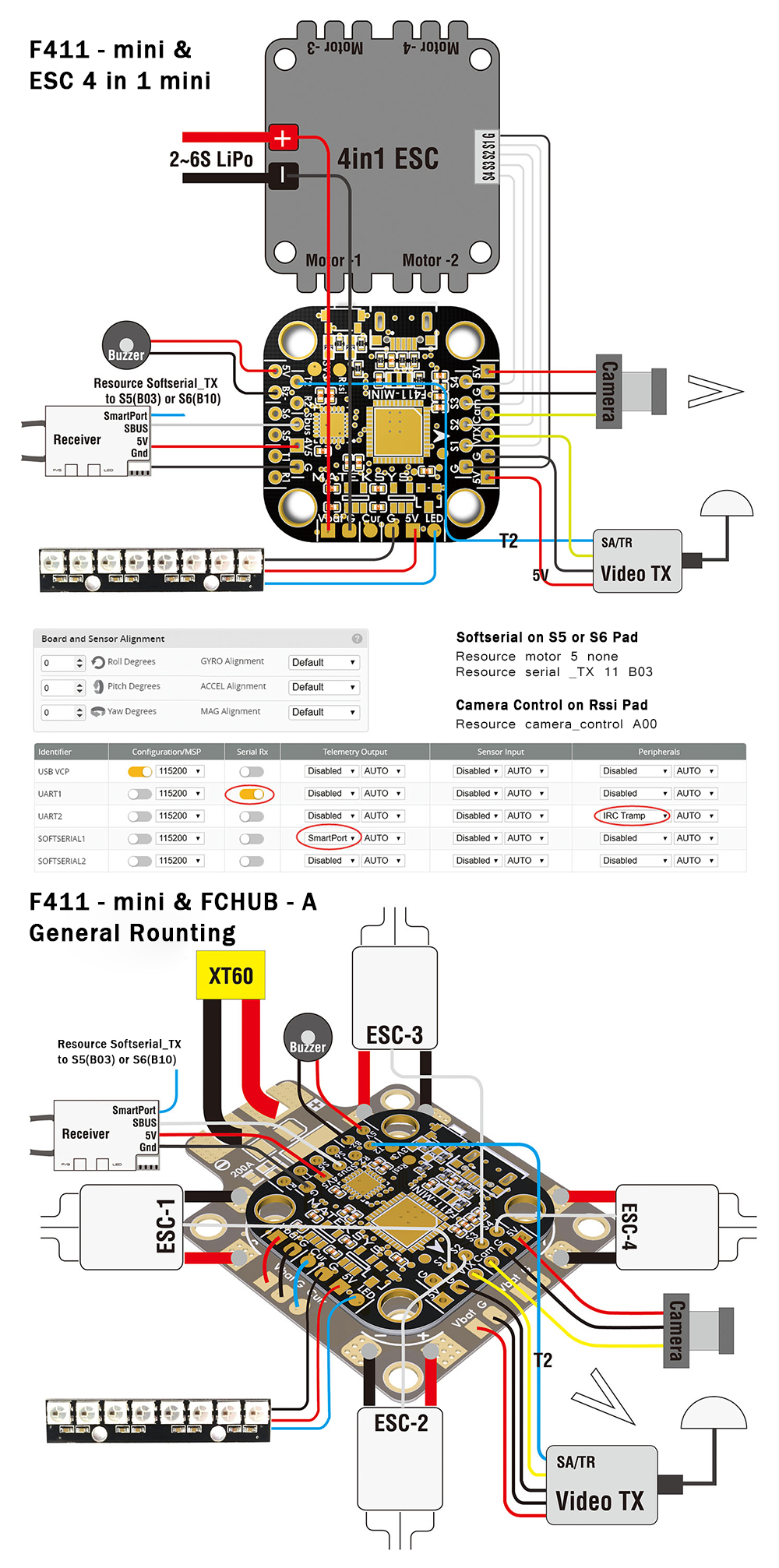

- 1 x Group of G/S1/S2/S3/S4 pads for 4 in 1 ESC Signal/GND
- 1 x I2C1
- 4 x pairs of corner pads for ESC signal/GND connections (DSHOT compatible)
- 1 x side-press button for BOOT (DFU) mode
- 1 x 16Pin bottom mounted FFC slot for FCHUB - 6S or FCHUB - VTX connection
Specification:
Brand name: Matek Systems
Item name: 20 x 20mm mini F4 flight controller AIO OSD BEC and LED strip for RC drone
MCU: 100MHz STM32F411
IMU: MPU6000
OSD: BetaFlight OSD w/ AT7456E chip
Camera control supported on Rssi pad
Battery voltage sensor: 1:10
Current sensor: No (FCHUB - A option)
BEC: 5V 2A
LDO 3.3V: max.300mA
I2C1 SDA / SCL available
WS2812 LED strip: Yes

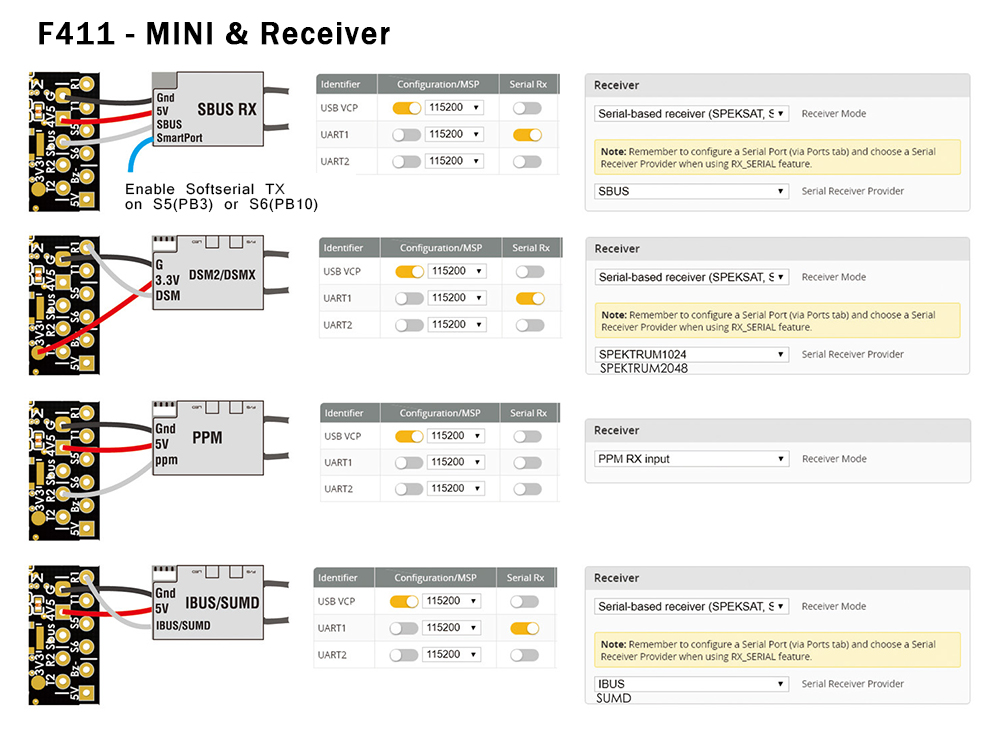

Built-in inverter for SBUS input (UART1 - RX)
PPM/UART shared: UART2 - RX
Softserial supported on S5 / S6
Beeper: Yes
RSSI: No
Blackbox: No

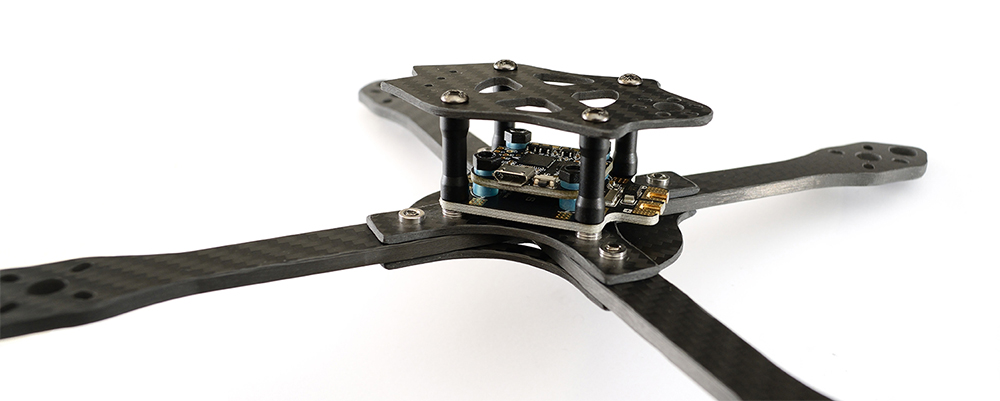

Mounting hole: 20 x 20mm
- 3 x LEDs for FC status (blue, red) and 3.3V indicator (red)
- 7 x PWM/DSHOT outputs without conflict
- 5 x UART
- 1 x Group of G/S1/S2/S3/S4 pads for 4 in 1 ESC Signal/GND
- 1 x I2C1
- 4 x pairs of corner pads for ESC signal/GND connections (DSHOT compatible)
- 1 x side-press button for BOOT (DFU) mode
- 1 x 16Pin bottom mounted FFC slot for FCHUB - 6S or FCHUB - VTX connection
Specification:
Brand name: Matek Systems
Item name: 20 x 20mm mini F4 flight controller AIO OSD BEC and LED strip for RC drone
MCU: 100MHz STM32F411
IMU: MPU6000
OSD: BetaFlight OSD w/ AT7456E chip
Camera control supported on Rssi pad
Battery voltage sensor: 1:10
Current sensor: No (FCHUB - A option)
BEC: 5V 2A
LDO 3.3V: max.300mA
I2C1 SDA / SCL available
WS2812 LED strip: Yes
Built-in inverter for SBUS input (UART1 - RX)
PPM/UART shared: UART2 - RX
Softserial supported on S5 / S6
Beeper: Yes
RSSI: No
Blackbox: No
Mounting hole: 20 x 20mm
Material: Composite Material
RC Parts & Accs: Speed Controllers
RC Parts & Accs: Speed Controllers
0.100
Package weight: 0.161 kg Product Size(L x W x H): 2.00 x 2.00 x 1.00 cm / 0.79 x 0.79 x 0.39 inches
Package Size(L x W x H): 7.00 x 6.00 x 1.00 cm / 2.76 x 2.36 x 0.39 inches

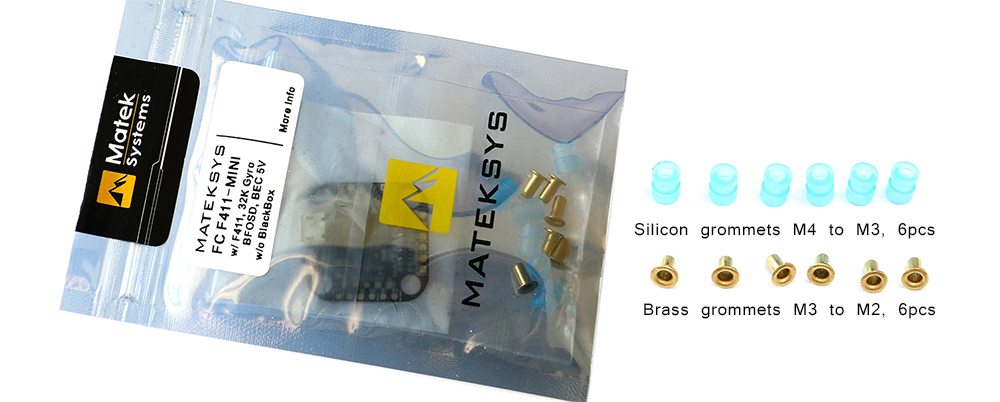

Package Contents: 1 x F411 Flight Controller, 6 x Silicon Grommet M4 to M3, 6 x Brass Grommet M3 to M2
