Matek Systems F4 F405 Mini Flight Controller for RC Drone FPV - Black - 3N60695112

Matek Systems F4 F405 Mini Flight Controller for RC Drone FPV - Black - 3N60695112

Close
$100.28
$33.09Save 67%
Offer ends in:
Tax excluded
Color:
Black
SKU:
3N60695112
Gift-wrap:
Available
Quantity
In Stock



Payment Security - Secure Transactions Using Paypal



Quick Ship - Leaves Warehouse In 1-2 Business Days



Return Policy - 30 Days Free Exchange & Return Policy

Description:

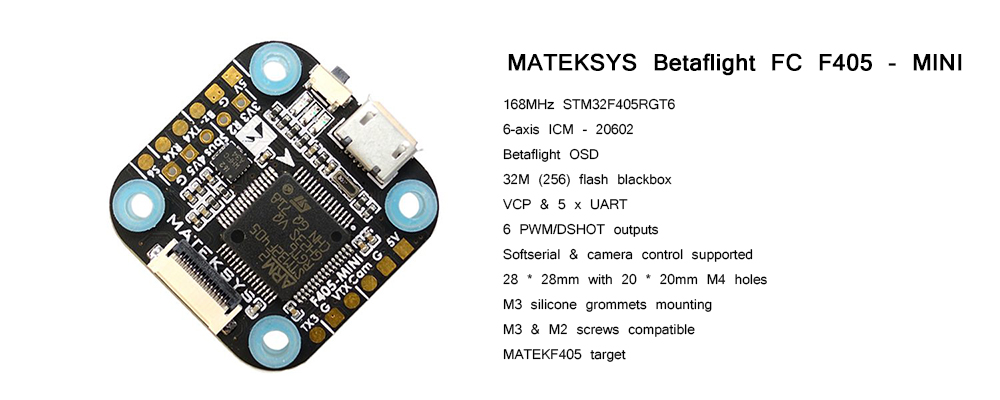

Brand name: Matek Systems
Item name: F405 mini flight controller
MCU: 168MHz STM32F405
IMU: 32K ICM20602 accelerometer (SPI)
Support 32K gyro update and 16K PID loop
OSD: Betaflight OSD w/AT7456E chip
Blackbox: 32M (256) flash
VCP, UART1, UART2, UART3, UART4, UART5

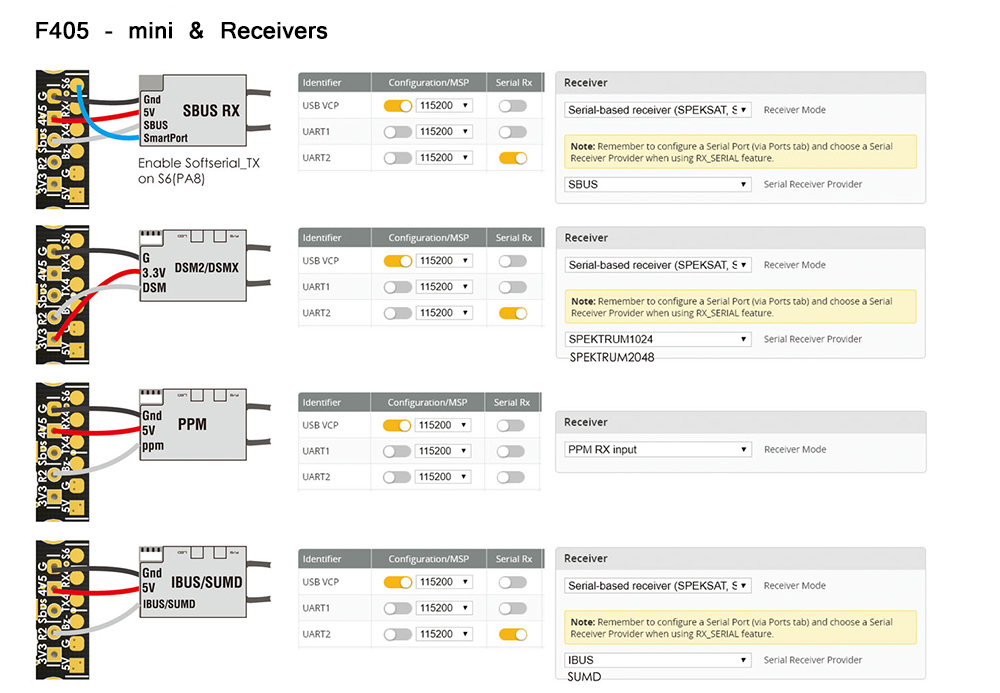

Built-in inverter for SBUS input (UART2 - RX)
PPM/UART shared: UART2 - RX
Softserial and camera control supported on S5 and S6
Battery voltage sensor: 1:10

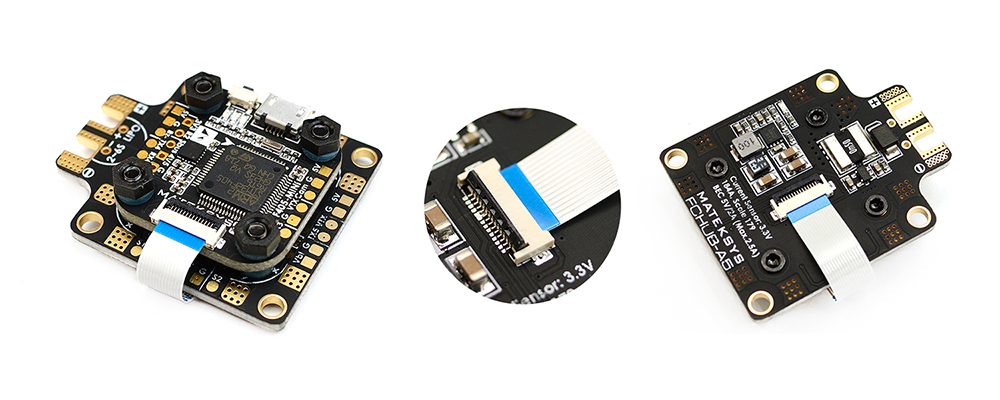

Current sensor: No (FCHUB - A5 option)
BEC 5V: No (FCHUB - A5 option)
LDO 3.3V: Max.300mA for Spektrum RX
12C1 SDA and SCL available
WS2812 LED strip: Yes
Beeper: Yes
RSSI: Yes
Material: Composite Material
RC Parts & Accs: Speed Controllers
0.100
Package weight: 0.161 kg
Product Size(L x W x H): 2.00 x 2.00 x 1.00 cm / 0.79 x 0.79 x 0.39 inches
Package Size(L x W x H): 7.00 x 6.00 x 1.00 cm / 2.76 x 2.36 x 0.39 inches

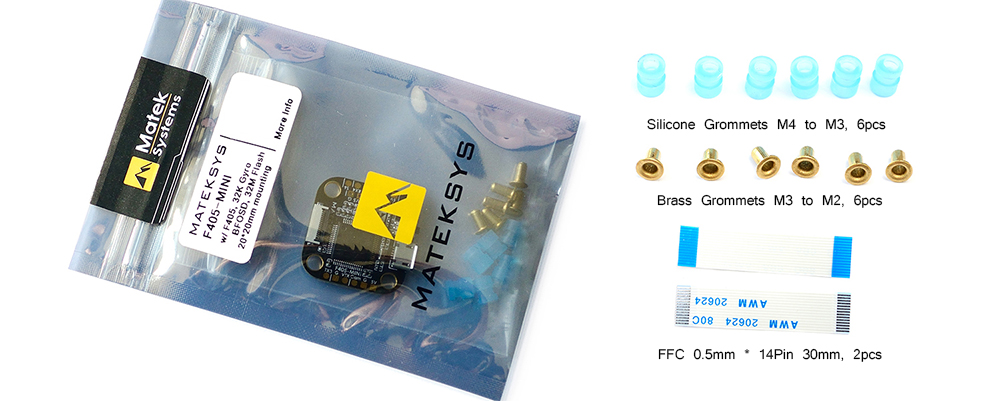

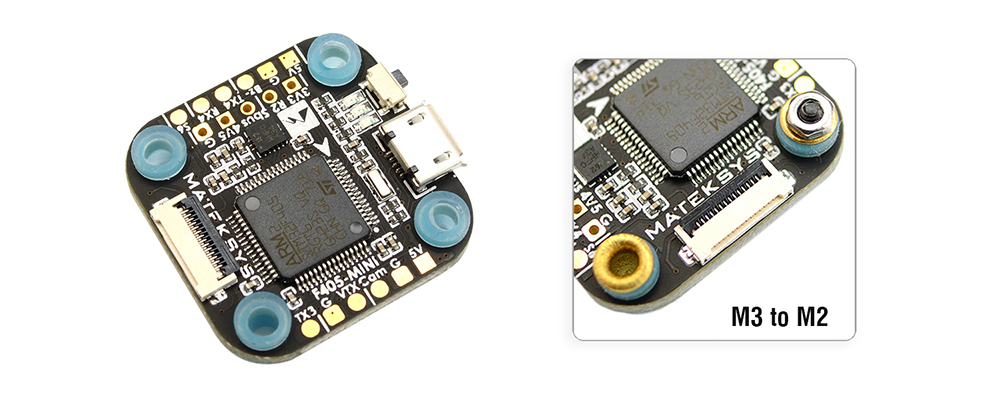

Package Contents: 1 x F405 Mini Flight Controller, 6 x Silicon Grommet M4 to M3, 6 x Brass Grommet M3 to M2, 2 x 0.5mm 14Pin 3cm Flexible Flat Cable

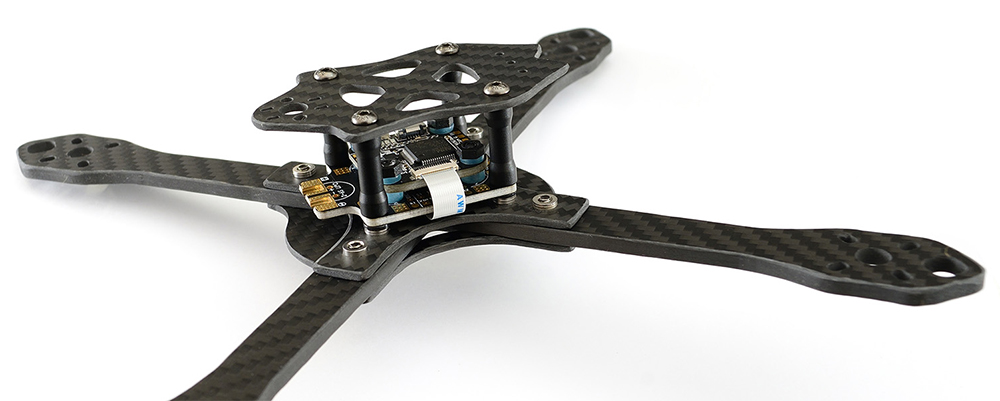

Matek Systems F4 F405 Mini Flight Controller Integrated OSD 32K Gyro 32M Flash 20X20mm for RC Drone FPV Racing
