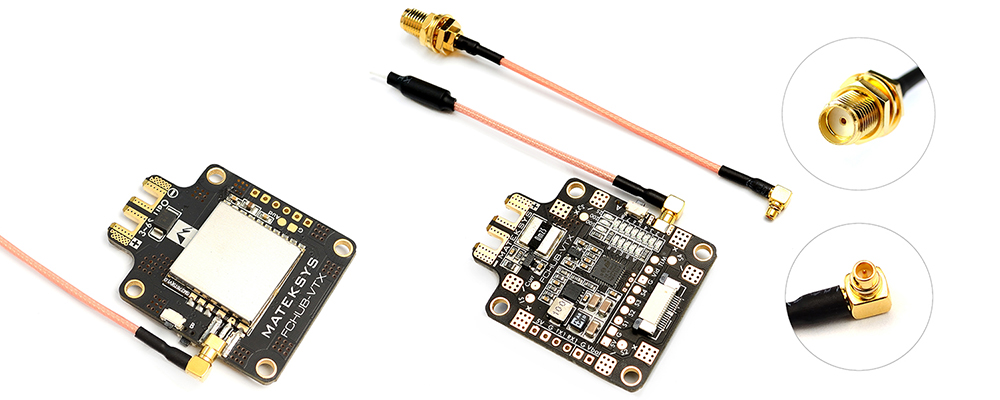

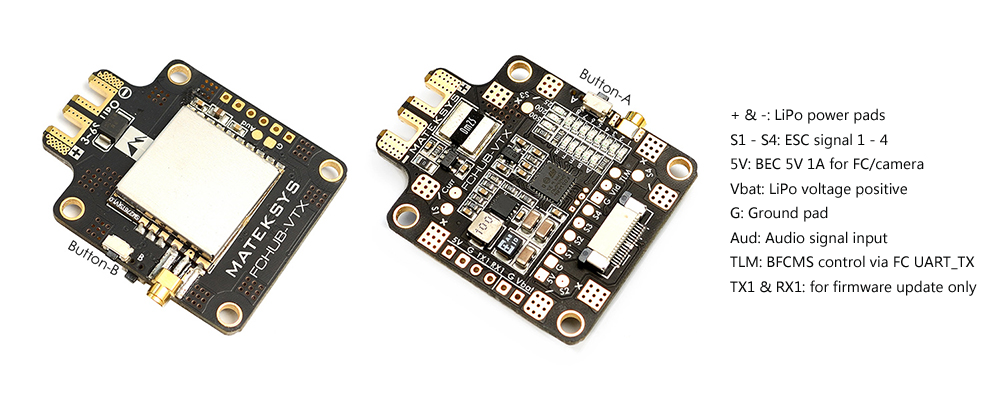

Matek Systems FCHUB - VTX Flight Controller for RC Drone FPV - Black - 3W60695312

Matek Systems FCHUB - VTX Flight Controller for RC Drone FPV - Black - 3W60695312

Close
$108.55
$30.39Save 72%
Offer ends in:
Tax excluded
Color:
Black
SKU:
3W60695312
Gift-wrap:
Available
Quantity
In Stock



Payment Security - Secure Transactions Using Paypal



Quick Ship - Leaves Warehouse In 1-2 Business Days



Return Policy - 30 Days Free Exchange & Return Policy

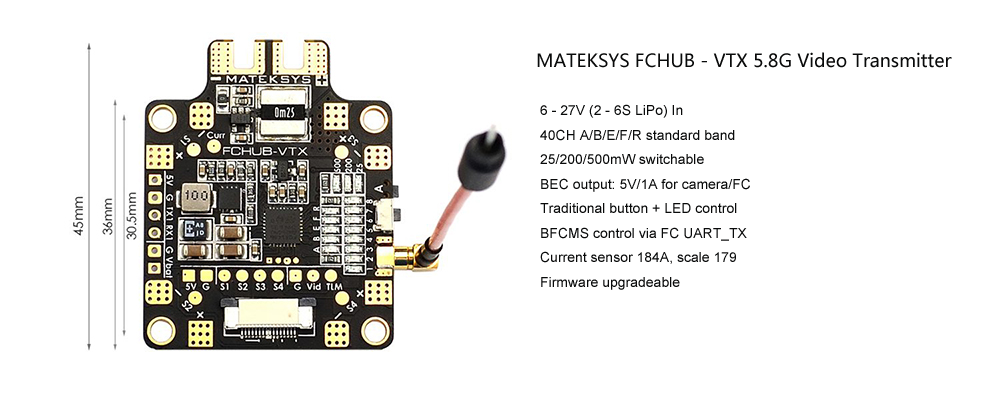

Specification:
Brand name: Matek Systems
Item name: FCHUB - VTX
Input voltage: 6 - 27V (2 - 6S LiPo)
PDB: 4 x 30A (4 x 46A, 5 seconds)
Current sensor: 184A (scale 179)
BEC output: 5V/1A for camera or FC

VTX: 40 standard 5.8G channels, A/B/E/F/R band
VTX output power: 25/200/500mW switchable
Traditional button + LED control of frequency and power
BFCMS (BFOSD and LUA script) control via FC UART_TX

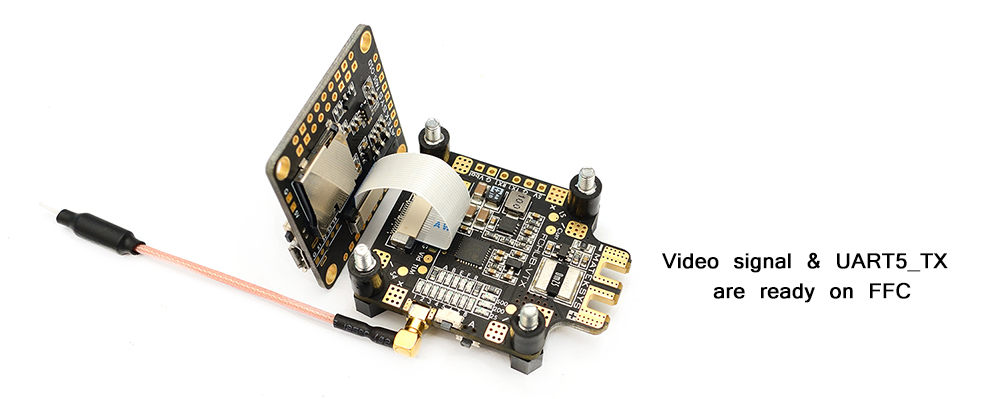

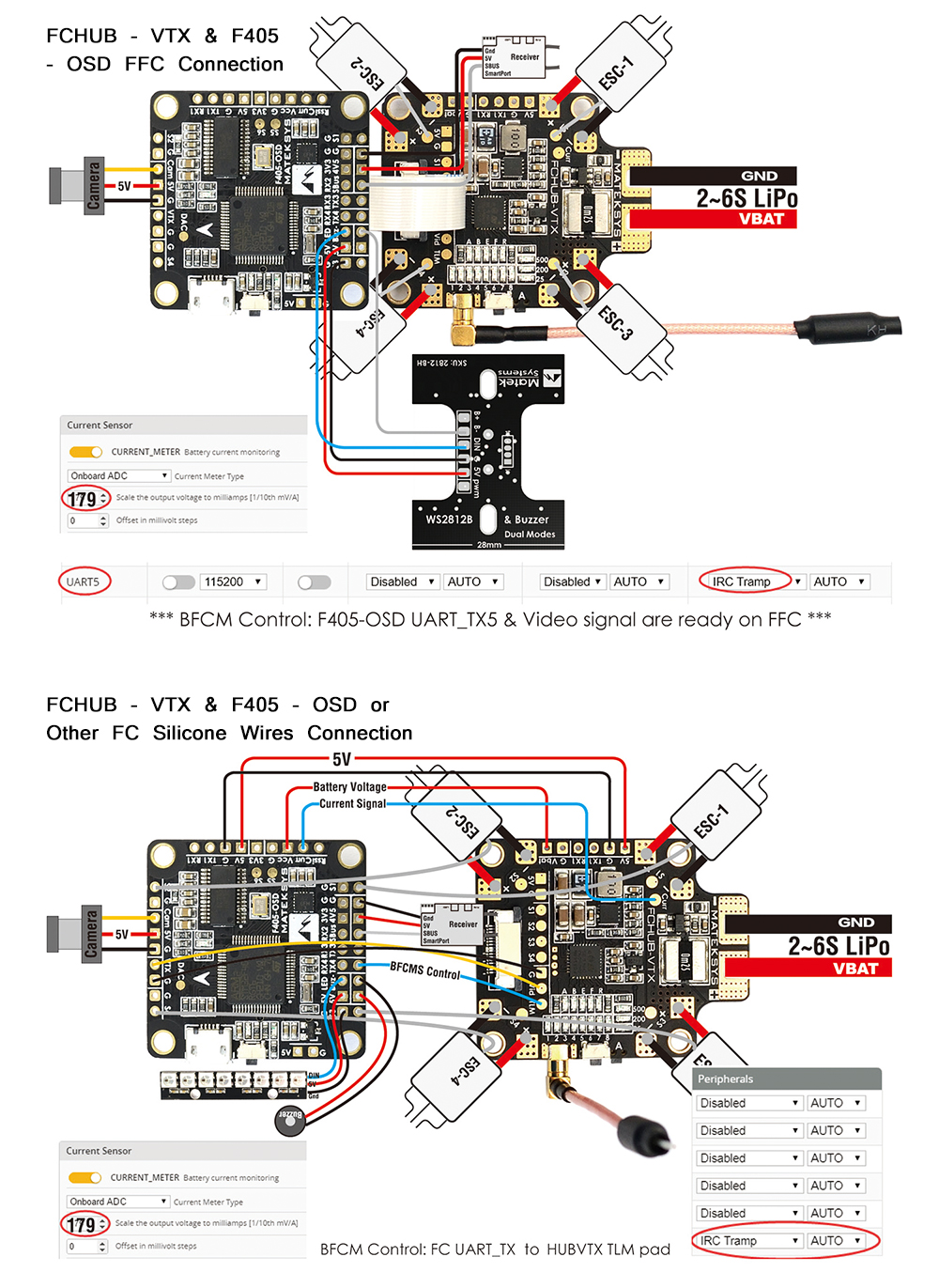

Video signal and TX5 are ready on FFC connected with MATEK FC F405 - OSD
Silicon wires connection with other brands FC
Firmware upgradeable

VTX power consumption: 3.1W max. 500mW
Video input impedance: 75 ohm
Audio subcarrier frequency: 6.5 MHz
RF connector: MMCX
Video format: NTSC/PAL
Material: Composite Material
RC Parts & Accs: Speed Controllers
0.100
Package weight: 0.161 kg
Product Size(L x W x H): 4.00 x 5.00 x 1.00 cm / 1.57 x 1.97 x 0.39 inches
Package Size(L x W x H): 7.00 x 6.00 x 1.00 cm / 2.76 x 2.36 x 0.39 inches

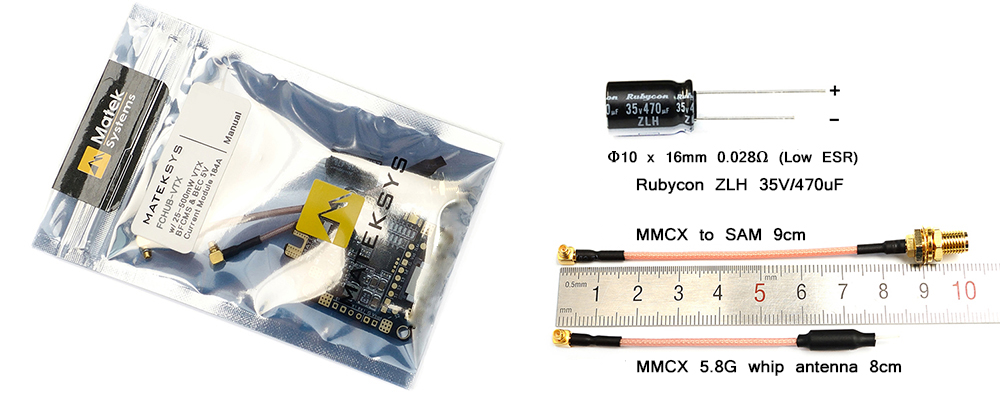

Package Contents: 1 x FCHUB - VTX Board, 1 x MMCX to SAM Cable, 1 x MMCX 5.8G Whip Antenna, 1 x Rubycon ZLH 35V/470uF Low ESR
