S2 5.8G 800TVL HD Micro CMOS FPV Camera 150-degree Angle of View 3.6g Ultralight NTSC / PAL Switchable - Black - 3227704512

LST - S2 5.8G 800TVL HD Micro CMOS FPV Camera 150-degree Angle of View 3.6g Ultralight NTSC / PAL Switchable - Black - 3227704512

Close
$62.46
$17.49Save 72%
Offer ends in:
Tax excluded
Color:
Black
SKU:
3227704512
Gift-wrap:
Available
Quantity
In Stock



Payment Security - Secure Transactions Using Paypal



Quick Ship - Leaves Warehouse In 1-2 Business Days



Return Policy - 30 Days Free Exchange & Return Policy


Description:

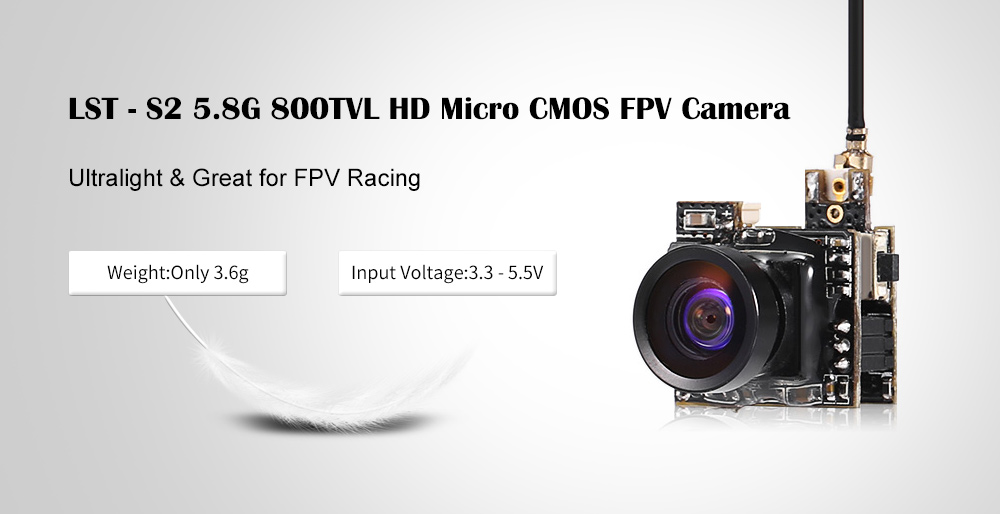

LST - S2 is an excellent all-in-one FPV camera that integrates an 800TVL HD CMOS camera, a 5.8G 40CH 25mW video transmitter, and a whip antenna. No soldering is needed. Just connect it to a 1S battery or the flight controller of your drone, then, you are able to enjoy the sharp image and real-time FPV. The AIO camera is extremely light and power-efficient, so the battery of your drone can last longer.

Main Features:
● Super light, only 3.6g including 800TVL HD camera, VTX, and antenna

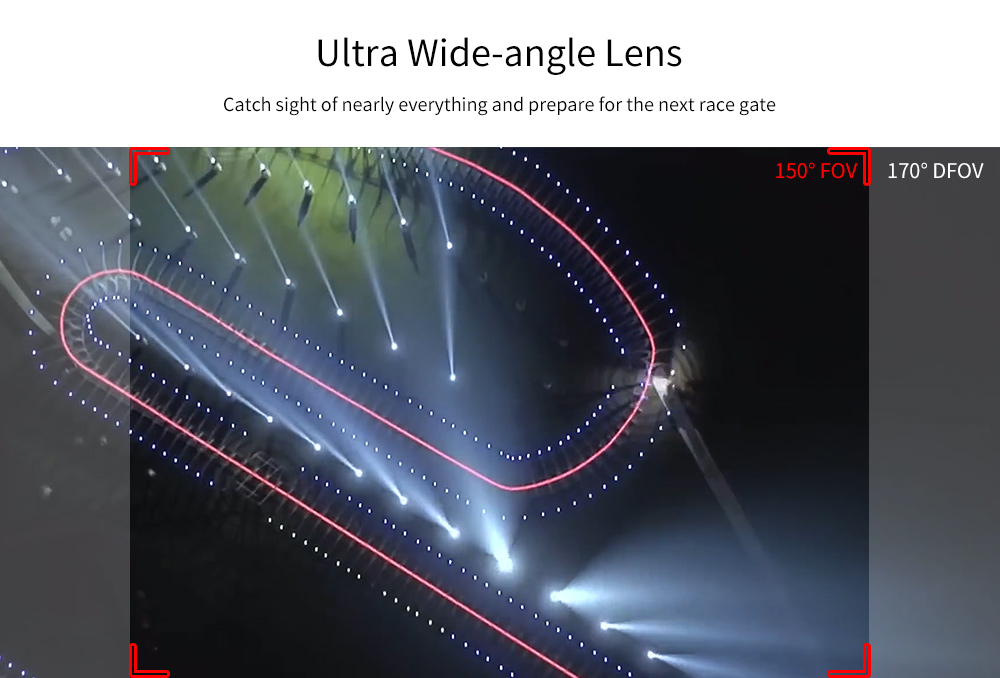

● Ultra wide angle lens, 150-degree FOV, 170-degree DFOV
● Five bands, 40 channels in total, with RaceBand ( Band R )

Specifications:

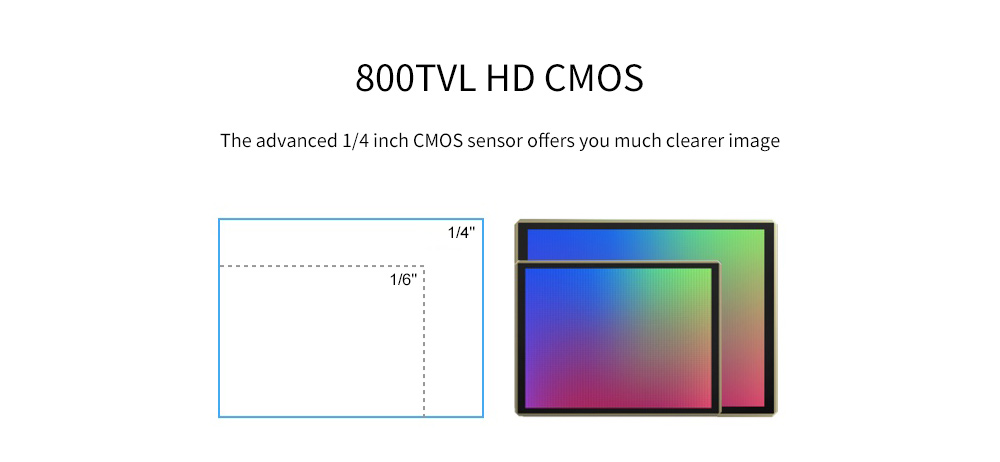

Sensor: 1/4 inch CMOS
Lens: M7 800TVL HD
Angle of view: 150-degree FOV, 170-degree DFOV

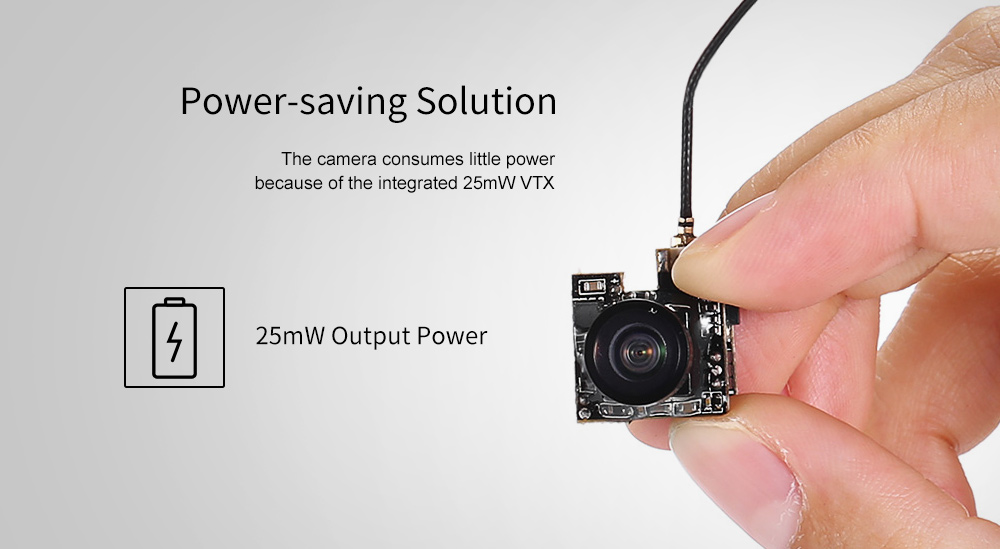

Power consumption: 380mA at 3.7V
Power supply: 3.6 - 5.5V

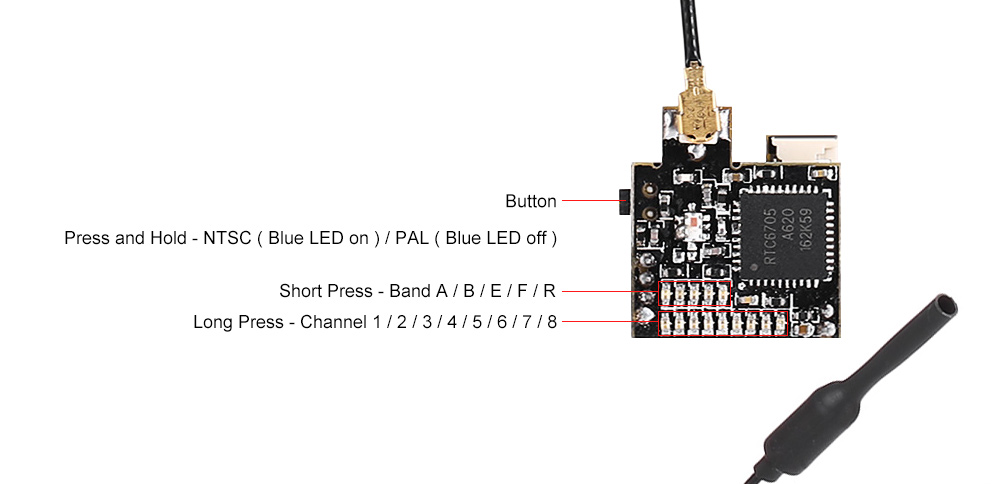

TV system: NTSC / PAL switchable
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output power: 25mW
Number of channels: 40
Audio carrier: 6.5MHz

FPV Equipments: FPV Mini Camera
Functions: Video
Sensor: CMOS
0.030
Package weight: 0.087 kg
Product size (L x W x H): 1.50 x 1.50 x 7.00 cm / 0.59 x 0.59 x 2.76 inches
Package size (L x W x H): 7.20 x 7.20 x 3.50 cm / 2.83 x 2.83 x 1.38 inches
Package Contents: 1 x AIO FPV Camera, 2 x Cable, 1 x English Manual
