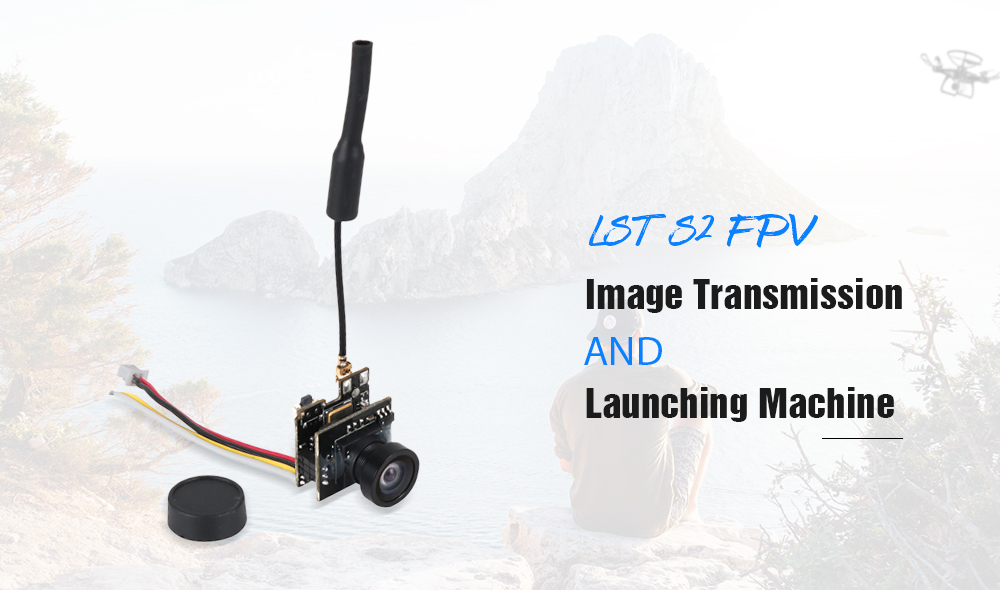

● The picture transmission integrated transmitter is about 3g, small in size and light in weight, and will not bring too much burden to the flight of the aircraft.
● With a long launch distance and a range of 500-600 meters, the aircraft can explore a wider area and help us explore the distant world.
● The signal is more stable, with 40 channels combined with 5 frequency bands and 8 frequency points, the signal is more stable and clear, and the image is clearer.
● Equipped with antenna, can be installed 360 degrees, with buckle installation, detachable, antenna can gain 3db, better effect, more convenient to use
Sensor: 1/4 inch CMOS
Lens: M8 800TVL
Format: NTSC / PAL ( switchable )
Power consumption: 380mA 3.7V
Power: 3.6 - 5.5V
Lens mirror diameter: 2.1mm IR coated FOV 150 degree ( horizontal )
Support video format: NTSC / PAL
Output impedance: 75 ohm
Output signal strength: 23 - 24dBm
Output power: 25mW
Wireless channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V - 5.5V
Audio carrier: 6.5MHz
Short press ( 1 sec or less ): change channels 1 - 8
Long press ( 1.5 sec ): change bands A - B - E - F - R
Long press ( 3 sec ): change NTSC/PAL system
Blue LED on = NTSC, blue LED off = PAL
FPV Equipments: Transmitter
0.010 Package weight:
0.066 kg Product size (L x W x H):
1.80 x 1.60 x 4.00 cm / 0.71 x 0.63 x 1.57 inches Package size (L x W x H):
5.00 x 5.00 x 5.00 cm / 1.97 x 1.97 x 1.97 inches
Package Contents: 1 x FPV Camera, 1 x Cable, 1 x English Manual
